Model LU-400 Hybrid Edition EN · 07 / 2026 · V1 Doc. No. LU400H-EN-01

Beam / Spot / Wash Hybrid Moving Head

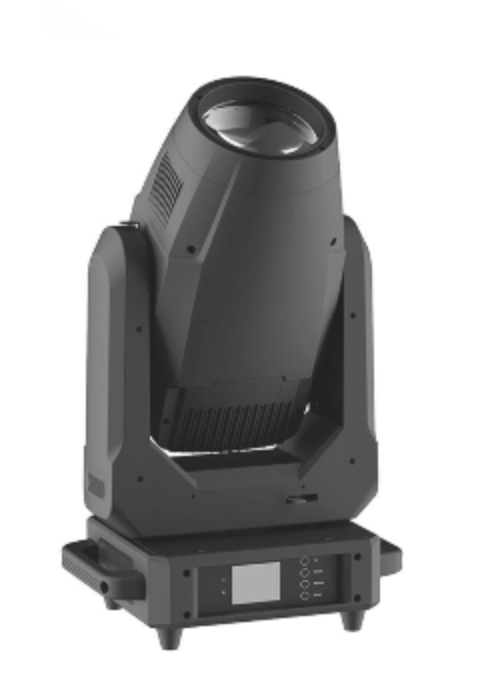

LU-400 Hybrid

Compact hybrid moving head with CMY colour mixing, colour wheel, rotating & fixed gobos, prisms and zoom for stage and touring

Operating manual. Please read completely before first use and keep for future reference.

Function

Beam · Spot· Wash

Pan / Tilt

540° / 270°16-bit

DMX channels

22 / 262 channel modes

IP rating

IP20indoor

Foreword

00Welcome

Thank you for choosing the Luminus Lighttech LU-400 Hybrid — a compact beam/spot/wash hybrid moving head with CMY colour mixing, colour wheel, rotating and fixed gobos, two prisms, frost and zoom.

This document describes commissioning, operation, care and troubleshooting of the fixture. Read this manual — especially the Safety Instructions chapter — completely before first use, and keep it together with the fixture. If the fixture is passed on to a third party, this manual must be included.

0.1Symbol legend

Warning Marks situations that may injure people or damage the fixture. Follow these notices without exception.

Note Marks useful additional information, tips or clarifications that make the manual easier to follow.

Danger — Voltage Marks situations with risk of fatal electric shock. Work on live parts must only be carried out by qualified personnel.

0.2Intended use

The LU-400 Hybrid is built to IP20 for indoor use — stages, clubs, studios and touring setups. It is not suitable for humid or excessively dusty environments; keep the fixture clean and service it roughly every three months.

0.3Scope of delivery

Check the package contents for completeness and transport damage after unpacking.

1 × Luminus Lighttech LU-400 Hybrid
1 × Power cable
1 × Operating manual

Table of Contents

—Overview

01Safety Instructions04
02Technical Data05
03Power & DMX Connection06
04Operating Modes & Control Panel07
4.1Operating modes07
4.2Display & panel settings08
05Scene Mode09
06Advanced Setup10
07DMX Channel Table (22 / 26 CH)11
7.1Colour wheel — illustrated13
08Maintenance & Troubleshooting14
—CE Conformity Note15

Chapter 01

01Safety Instructions

Read this chapter completely before first use. Damage resulting from failure to observe these instructions is excluded from the warranty.

Risk of fatal electric shock Only qualified professionals may install, operate and repair this fixture — always strictly in accordance with this manual. Electrical connection must only be carried out by qualified installers. Each fixture must be properly earthed.

The light source and any damaged external supply cable must only be replaced by the manufacturer, its service agent, or a similarly qualified person.
Check the fixture for transport damage immediately upon receipt. Do not operate a damaged fixture and contact the supplier promptly.
This product is intended for indoor use (IP20). Avoid humid or excessively dusty environments; service roughly every three months.
Install the fixture in a well-ventilated location at least 50 cm from walls; keep ventilation openings clear.
Do not look directly into the light source — risk of eye damage.
Never attempt to open or repair the fixture yourself.
Do not use a power cord with damaged insulation and do not run it alongside other cables. Unplug the fixture when not in use or when cleaning — never pull on the cord.
If the fixture has a safety eyelet or hole, additionally secure it with a safety cable.
Before operation, check that all parts are securely connected and screws are properly tightened.

Before opening Fully disconnect the fixture from mains power before opening any cover. There are no user-serviceable parts inside.

Chapter 02

02Technical Data

Optics & Effects

Type	Beam / Spot / Wash hybrid
Colour mixing	CMY + CTO
Colour wheel	9 base colours + mixed colours, rainbow effect
Fixed gobos	12 gobos + white
Rotating gobos	7 gobos + white, indexable & rotating
Prisms	2 × independent, each rotating
Frost	Yes, linear
Zoom / Focus	Motorized, adaptive focus

Movement

Pan	0 – 540°, 16-bit
Tilt	0 – 270°, 16-bit
Pan/Tilt correction	Optical feedback, automatic error correction

Control

Protocol	DMX-512 / RDM
Channel modes	22 CH / 26 CH
Operating modes	DMX · Auto · Sound · Scene
Display	Touchscreen, multilingual (EN/DE/中文)

Electrical

Input voltage	AC 100 – 240 V
Fuse	T5A, 250 V

Ingress protection

IP rating	IP20 — indoor
Minimum wall clearance	50 cm (ventilation)

Connections

Power	Power IN / OUT
Data	3-pin XLR DMX IN / OUT

Chapter 03

03Power & DMX Connection

3.1Power connection

Input voltage	AC 100 – 240 V
Fuse	T5A, 250 V

Wire colour	Function	Marking
Brown	Live wire	L
Blue	Neutral wire	N
Yellow / Green	Earth	PE

If the external cable is damaged, it must be replaced with a cable of the type specified by the manufacturer or its service agent. The mains voltage used must match the voltage indicated on the rating label and must be protected by overload/leakage protection. Do not connect too many fixtures to a single power cable.

3.2DMX512 connection

Connect fixtures exclusively in series (not in parallel) via 3-pin XLR cables: DMX OUT of the previous fixture to DMX IN of the next. Each fixture has its own address code, set via the control panel.

Fit a 120 Ω termination resistor between pins 2 and 3 of the output connector on the last fixture in the chain to prevent signal reflections.
If a fixture within the chain loses power, the DMX pass-through is bridged internally so the remaining fixtures continue to be addressed.
All fixtures must be set to DMX mode to ensure only one host is active on the signal line.

RDM note RDM (Remote Device Management) extends the DMX512-A protocol over the bidirectional RS-485 bus. RDM operation requires an RDM-capable controller; a simple one-way signal amplifier in the chain blocks RDM feedback data.

Chapter 04

04Operating Modes & Control Panel

4.1Operating modes

Mode	Description
DMX mode	Console operation; receives DMX and RDM signal.
Self-walking mode	The fixture runs automatically according to a built-in program.
Sound mode	When strong sound is detected, the fixture automatically runs a scene from the built-in program; otherwise the last scene is maintained.
Scene mode	Runs as above and additionally supports custom editing of up to 10 scenes.

Scene playback in scene mode

Setting	Description
1 – 10	Outputs the specified scene
Automatic	Outputs scenes automatically in order at their set time (non-0); scenes with time 0 are skipped

Master/slave selection (outside DMX mode)

Setting	Description
Master	Runs built-in program and outputs data if no DMX signal is present; otherwise no data output (synchronization)
Slave	Runs built-in program, does not output data (not synchronized with other fixtures)
Auto	If no DMX signal is present, runs built-in program; otherwise operates from the DMX signal

Note Scene mode is suitable for single-fixture use or small quantities: only a fixed scene needs to be output, or a simple program run, without a console. If the light source is a bulb, wait 10 minutes before switching the bulb off.

4.2Display & panel settings

The fixture supports English, German and Chinese as well as mirrored display. The touchscreen provides the following settings:

Setting	Values	Function
Language	English / 中文	Display language
Screen protection (after 30 s idle)	Off	Keeps the last page lit
	Mode 1	Screen off
	Mode 2	Black screen, address code shown bottom-left
	Mode 3	Shows brand info, address code & operating mode
Screen rotation	Off	No mirroring
	On	Mirrored display
	Auto	Automatically detects fixture orientation
DMX indicator	Mode 1	Lit with signal, off without signal
	Mode 2	Off with signal, lit without signal
	Mode 3	Blinks with signal, off without signal
Signal brightness	1 – 10	Signal LED brightness, 10 steps
Backlight	1 – 10	Brightness after 10 s idle, 10 steps
Touch switch	On / Off	Disable touch if damaged; use auxiliary buttons instead
Touch calibration	—	Calibration page if the touchscreen misbehaves

Touch calibration Do not enter the calibration page under normal circumstances. Only use it when touch detection is demonstrably faulty; if the touchscreen itself is damaged, disable touch instead.

Chapter 05

05Scene Mode

In scene-editing mode the fixture does not receive DMX console data — edited values are reflected on the fixture immediately. Up to 10 scenes can be stored.

Setting	Values	Description
Scenario selection	1 – 10	Selects the scene to edit
Scene time	0	Scene does not participate in automatic output
Scene time	1 – 255	0.1 s to 25.5 s hold time
Channel 1 · Pan	0 – 255	Channel values per the DMX channel table (Chapter 07)
…	0 – 255
Channel N · function	0 – 255

Reset behaviour in scenes If the reset channel is triggered within a scene, the fixture performs the reset; afterward that channel's value automatically resets to prevent repeated resets.

Chapter 06

06Advanced Setup

Setting	Values	Description
Pan invert	Off / On	Reverses the X-axis direction of travel
Tilt invert	Off / On	Reverses the Y-axis direction of travel
P/T rectify	Off / On	Detects XY step loss and corrects position automatically
Pan offset	4 – 150	X-axis position offset
Tilt offset	4 – 48	Y-axis position offset
Data hold	Off	On signal loss, motors & light source return to reset state
Data hold	On	On signal loss, the last DMX data frame is held
Factory setting	—	Resets all parameters to factory values after confirmation

6.1Status display

The menu can display the fixture's real-time status — useful for after-sales service and maintenance.

Stepper info	Hall status, Pan/Tilt live position, optocoupler level
Error log	Last 8 faults (Hall, optocoupler, step, bulb, sensor, fan failures)

Fixture status	Communication quality, miscount, temperatures
Version / light time	Firmware versions, total light-source running time

Chapter 07

07DMX Channel Table (1/2 · Channel 01–13)

26CH	22CH	Function	Range / Description
01	01	Pan	0 – 255 · 0 – 540°
02	02	Pan fine	0 – 255 · 0 – 2°
03	03	Tilt	0 – 255 · 0 – 270°
04	04	Tilt fine	0 – 255 · 0 – 1°
05	—	XY speed	Fast → slow
06	05	Dimmer	0 – 255 · 0 – 100 %
07	06	Strobe	0–3 Closed
			4–103 Pulse/strobe rate, slow → fast
			104–107 On/off
			108–155 Slow → fast
			156–207 Slow → fast, random-frequency strobe
			208–212 On/off
			213–251 Slow → fast, random-frequency strobe
			252–255 On/off
08	07	Colour	see illustrated colour wheel, Section 7.1
09	08	Cyan	0 – 255
10	09	Magenta	0 – 255
11	10	Yellow	0 – 255
12	11	CTO	0 – 255
13	12	Fixed gobos	0–4 Gobo 1
			5–9 Gobo 2
			10–14 Gobo 3
			15–19 Gobo 4
			20–24 Gobo 5
			25–29 Gobo 6
			30–34 Gobo 7
			35–39 Gobo 8
			40–44 Gobo 9
			45–49 Gobo 10
			50–54 Gobo 11
			55–59 Gobo 12
			60–64 White
			65–69 Jitter pattern 2, slow → fast
			70–74 Jitter pattern 3, slow → fast
			75–79 Jitter pattern 4, slow → fast
			80–84 Jitter pattern 5, slow → fast
			85–89 Jitter pattern 6, slow → fast
			90–94 Jitter pattern 7, slow → fast
			95–99 Jitter pattern 8, slow → fast
			100–104 Jitter pattern 9, slow → fast
			105–109 Jitter pattern 10, slow → fast
			110–114 Jitter pattern 11, slow → fast
			115–119 Jitter pattern 12, slow → fast
			120–127 White
			128–190 Reverse flow, fast → slow
			191–192 Stop
			193–255 Forward flow, slow → fast

Continued on page 12

07DMX Channel Table (2/2 · Channel 14–26)

Continued from page 11

26CH	22CH	Function	Range / Description
14	13	Rotating gobos	0–9 White
			10–19 Gobo 1
			20–29 Gobo 2
			30–39 Gobo 3
			40–49 Gobo 4
			50–59 Gobo 5
			60–69 Gobo 6
			70–79 Gobo 7
			80–89 Jitter pattern 1, slow → fast
			90–99 Jitter pattern 2, slow → fast
			100–109 Jitter pattern 3, slow → fast
			110–119 Jitter pattern 4, slow → fast
			120–129 Jitter pattern 5, slow → fast
			130–139 Jitter pattern 6, slow → fast
			140–149 Jitter pattern 7, slow → fast
			150–200 Forward flow, fast → slow
			201–205 Stop
			206–255 Reverse flow, slow → fast
15	14	Gobo rotation	0–127 Fixed position, 0–360°
			128–190 Reverse flow, fast → slow
			191–192 Stop
			193–255 Forward flow, slow → fast
16	—	Spin fine-tune	0 – 255
17	15	Prism 1	0–127 None
17	15	Prism 1	128–255 Prism 1 open
18	16	Prism 1 rotation	0–127 · 0–360°
			128–187 Forward flow, fast → slow
			188–195 Stop
			196–255 Reverse flow, slow → fast
19	17	Prism 2	0–127 None
19	17	Prism 2	128–255 Prism 2 open
20	18	Prism 2 rotation	0–127 · 0–360°
			128–187 Forward flow, fast → slow
			188–195 Stop
			196–255 Reverse flow, slow → fast
21	19	Frost	0–127 None
21	19	Frost	128–255 Frost open
22	—	Adaptive focus	0 – 255
23	20	Zoom	0 – 255
24	21	Focus	Far → near (active when Ch. 22/Adaptive Focus > 0)
25	—	Focus fine-tune	0 – 255
26	22	Reset / function	0–209 None
			210–215 XY reset (3 s)
			216–219 None
			220–235 Effect reset (3 s)
			236–239 None
			240–255 Full reset (3 s)

7.1Colour wheel — Channel 8 / 07

The colour wheel combines 9 fixed base colours, 8 transitional mixed colours, and a rainbow run effect (forward and reverse). Colour names and DMX ranges correspond to the illustration below:

CH 08/07	Colour
0–9	White
10–19	Red
20–29	Orange
30–39	Yellow
40–49	Green
50–59	Cyan
60–69	Magenta
70–79	Blue
80–89	UV

Mixed colours & rainbow effect

CH 08/07	Colour / effect
90–99	White + Red
100–109	Red + Orange
110–119	Orange + Yellow
120–129	Yellow + Green
130–139	Green + Cyan
140–149	Cyan + Magenta
150–159	Magenta + Blue
160–169	Blue + UV
170–179	UV + CTO
180–215	Rainbow, forward (fast → slow)
216–220	Stop
221–255	Rainbow, reverse (slow → fast)

Chapter 08

08Maintenance & Troubleshooting

8.1Cleaning

Disconnect the fixture from mains power and let it cool before cleaning; open the cover.
Carefully remove dust from optical parts using compressed air or a vacuum cleaner — do not use solvents.
Use lint-free paper dampened with distilled water or alcohol; remove residue with distilled water and dry with a soft cloth.
Clean the fan and vents regularly with a soft brush, compressed air, or a vacuum cleaner.

8.2Troubleshooting

Problem	Possible cause	Check / solution
Dim / hazy beam	Light source at end of life · dirty optics	Replace light source · clean optics & components
Gobo projection out of focus	Focus channel not matched to throw distance	Adjust focus channel values for the current projection distance
Light effects unresponsive	Internal wiring disconnected	Stop operation, have connections checked by a qualified dealer
Console not detected after reset	Wrong DMX start address · signal cable damaged/loose	Check start address & cable/connector · add signal amplifier + 120 Ω resistor
Fixture will not power on	Weak power supply	Check/replace input fuse · check mains supply, mainboard & connectors

Repairs by qualified personnel only Unqualified persons must not remove or open the fixture or its accessories. Unauthorized intervention voids the warranty.

Appendix

—CE Conformity Note

The manufacturer declares, under sole responsibility, that the LU-400 Hybrid complies with the relevant European Union harmonization legislation.

Applied EU directives

2014/35/EU — Low Voltage Directive (LVD)
2014/30/EU — Electromagnetic Compatibility Directive (EMC)
2011/65/EU — RoHS Directive (restriction of hazardous substances)

Applied harmonized standards

EN IEC 60598-1 / EN IEC 60598-2-17 — Safety of luminaires (stage/studio luminaires)
EN 62471 — Photobiological safety of lamps and lamp systems
EN 55015 / EN IEC 61547 / EN IEC 61000-3-2 / EN 61000-3-3 — Electromagnetic compatibility (EMC)

Standard editions will be finally verified prior to issue. The signed EU Declaration of Conformity is available as a separate document upon request from the manufacturer.
